Grain Combine Harvester

Date:2015-06-19 Label：

The Grain Combine Harvester has extremely strong Chassis, excellent waterproof suspension wheel system, easier turning and control with disc brake and special heavy-duty gearbox for hydraulic steering

Introduction to Grain Combine Harvester

1. The Grain Combine Harvester has extremely strong Chassis, excellent waterproof suspension wheel system, easier turning and control with disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
2. With 48kw diesel engine and 200mm cutting width and Auto Transmission, the grain combine harvester can make quite high efficiency
3. Grain Combine Harvester is with grand cab, header, reel hydraulic lifting system and the double deck screen cleaning system: punched screens and shells screen has become its bright advantage to attract customers.
4. Horizontal axial flow bar tooth threshing cylinders and axial flow plate tooth rethresher help to ensure a bigger clean rate, less breakage and lower loss rate for the grain combine harvester.
5. With the wider conveyer groove with innovative cutter bar lifting system and lower ground pressure the grain combine harvester can make feeding and lifting and running in the fields more effective

Parameter of Grain Combine Harvester

Model	4LZ-2.0D
Usage	For harvesting rapeseed
Overall Dimensions (L x W x H)	501026602870 mm
Weight	2810 kg
Engine	Diesel Engine
usage	harvesting rapeseed rice and wheat grain
Rated Power	48kw / 2600 rpm
Chassis
Rubber Track	4009048
Transmission	Transmission case( widen gear box )
Ground Pressure	≤24 kpa
Min. Ground Clearance	230mm
Header
Cutting Width	2200 mm
Type of Lifting	Hydraulic
Lifting of Reel	Hydraulic
Steering	Hydraulic
Conveyor	Chain rack tooth type
Paddy fill Method	Grain Tank & Bag
Grain Tank	1 m³
Total Loss
Total loss rate	≤8 %
Breakage	≤1.0%
Impurity	≤2.0%

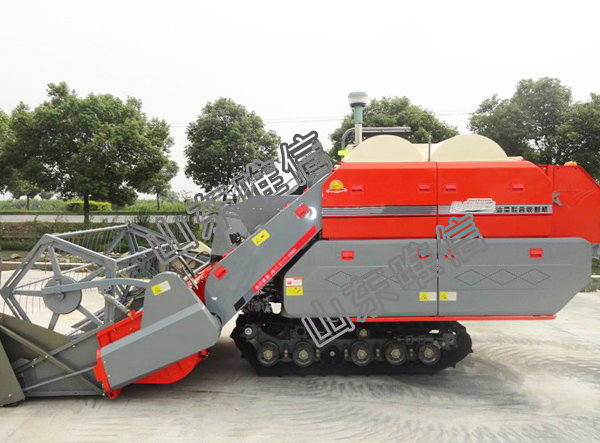

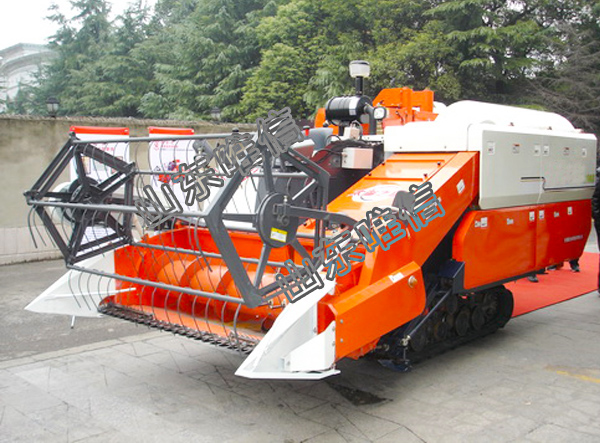

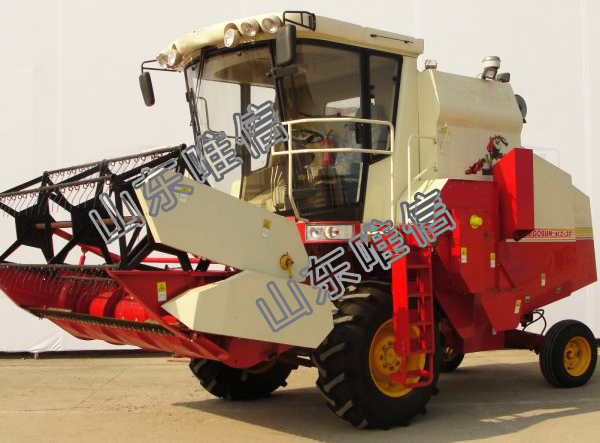

Pictures of Grain Combine Harvester

Grain Combine Harvester
