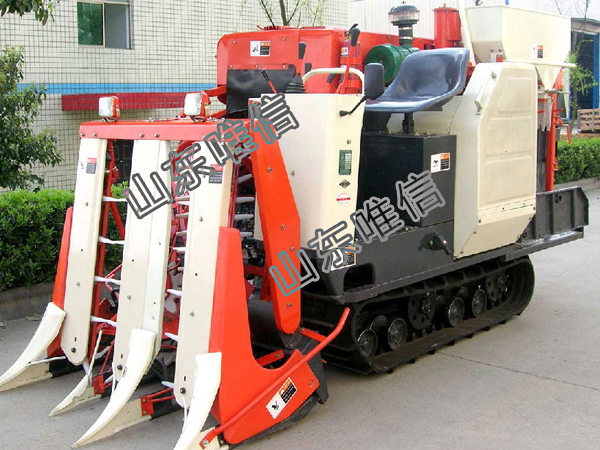

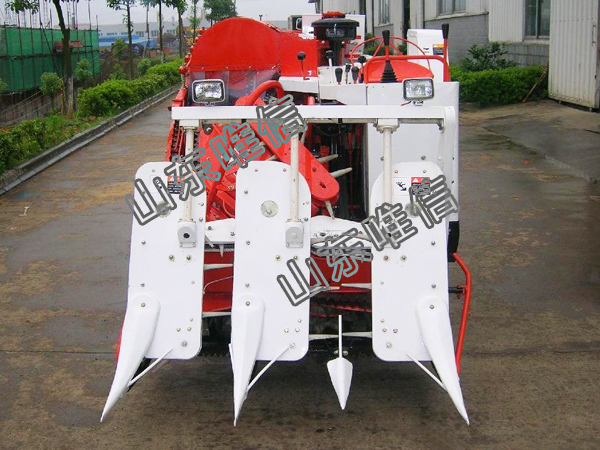

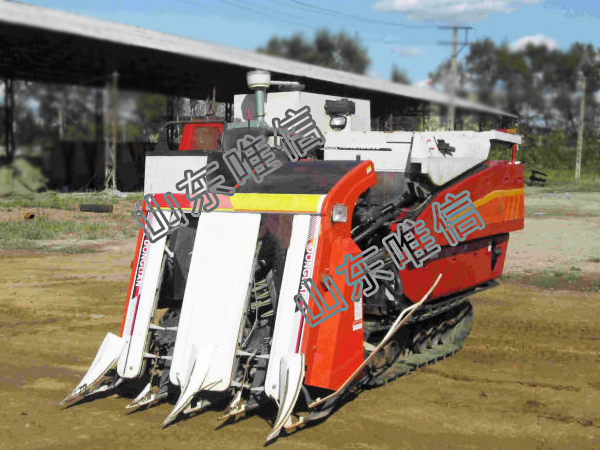

Farm Equipment Half Feeding Combine Harvester

Feeding Capacity  (KG/s)

4.0

Work Dimension  L*W*H (mm)

4900*2890*2700

Weight

(KGS)

2900

Cabin/Sun-roof

Sun-roof

Engine Part

Model No.

Changchai 4L88

Power/Speed (ps[Hp]/rpm)

88/2700

Fuel

Light Diesel Oil

Fuel Capacity (L)

130

Fuel Consumption(kg/hm2)

12~30

Start

Motor Starter

Gear Box

ZKB65 made by WORLD Factory.

HST

40CC HST Imported from south Korea.

Walking Part

Rubber Track

Length of Ground Contact (mm)

1700

Center Distance (mm)

1160

Size(mm)

450*90*51

Average Contact Pressure

(kpa[kgf]/cm2)

≤20Kpa

Min. Ground Clearance (mm)

300

Gear Shifts

Variable Sun-transmission 3 Shifts

Walk Speed (Km/Hour)

Low:0~1.85 Medium:0~6.5 High:0~9

Theoretical Work Speed (Km/Hour)

0.9-6.5

Harvesting Unit

Grain Lifter

Divider

Working Width (mm)

2200

Reel Bat

Dia. × Length (mm)

900×2028

Gearshift Method

Constant Speed

Adjusting Means

Hydraulic

Stubble Height[Lift] (mm)

25cm or above

Threshing &Harvesting Unit

Threshing Mode

Axial Flow Type, Bullet Rotor

Threshing Rotor

Type of Threshing

Beat Bar

Dia. ×Length (mm)

620*2050

Rotating Speed(rpm)

662/732

Fan

Diameter

400

Separating Type

Vibrating Sieves +Air Blow

Area of Sieves (Lowe and Upper Sieves) (m2)

1.645

Grain-unload Unit

Grain Tank Capacity (M3)

1.4

Grain Discharging Type

Vertical Discharging Pipe

Alarm Units

Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger

Work Efficiency(hm2/h)

0.4~0.7

Crops

Rice, Wheat

Total Loss

Less than 2.5%

Breakage

Less than 1.5%

Impurity

Less than 1.5%
