Eight Rotary Wing Agricultural Unmanned Aerial Vehicle

Features of Eight Rotary Wing Agricultural Unmanned Aerial Vehicle

1, Eight Rotary Wing Agricultural Unmanned Aerial Vehicle designed with simple operation, low failure.
2, spray width of Eight Rotary Wing Agricultural Unmanned Aerial Vehicle: 3.5-4.5 meters.
3, GPS positioning: a take-off function (aircraft take-off, as long as the throttle on it). You can set the height, the voltage is too low, there are automatic alarm function.
4, each spraying area: 20-40 acres during the day, 10-20 acres at night, raw 1 minute 1 acres of land

Technical Index of Eight Rotary Wing Agricultural Unmanned Aerial Vehicle

Dimensions (L * W * H) 2110 * 2110 * 800mm
Aircraft weight 11KG
Maximum takeoff weight 30KG
Pesticide container capacity 10L
Spray bar length 220cm
Body Material Carbon Fiber & Aluminum Alloy
Charger High Power Lithium Balance Charging Equipment
Spraying system medicine box, diffuse spray system, booster pump set
Operating temperature -10 ℃ -40 ℃
Lithium battery life of 300 times charge and discharge
Maximum payload (5-20) KG (± 5%)
Lithium polymer power battery 22.2V / 16000mA / life time 10min
Operating speed 3-8m / s (wind speed 2-3 grade)
Relative  height: 1-3 meters above crops  (depending on the specific crop)
Spray (6 0.3L / min nozzle, 2.2 meters long spray pipe) 2-4 meters (downwind or wind, wind speed 2-3)
Spray flow 1-1.2L / min (6 nozzles)
High concentrations pesticide consumption 0.5-1.0L / mu (depending on the specific crop)
Spray operation efficiency of 300 acres / day (depending on the actual operation of the situation)

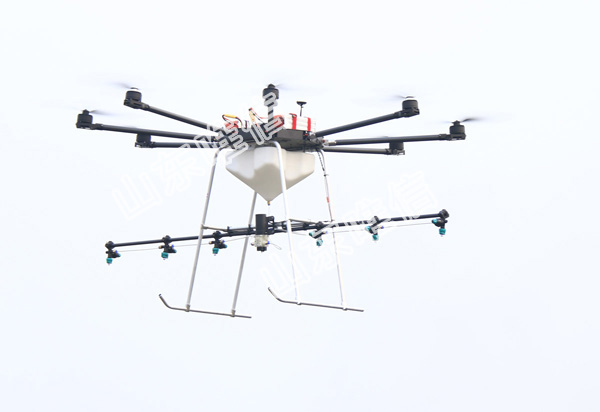

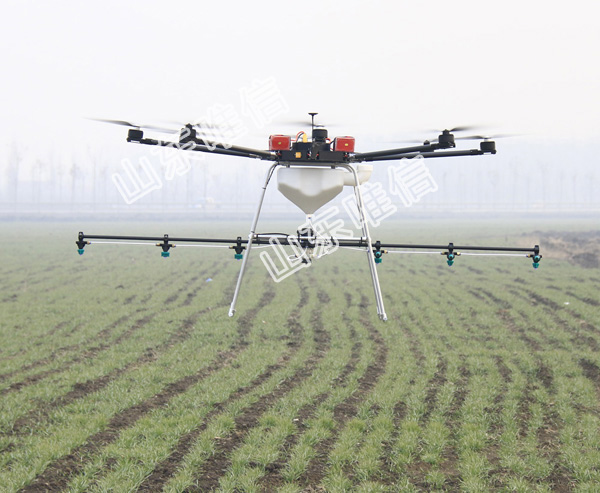

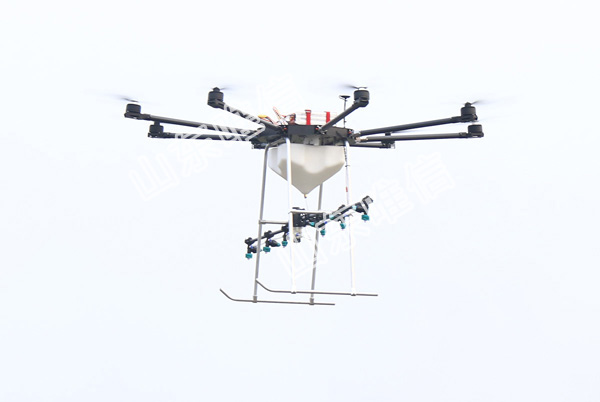

PHOTOS OF

Eight Rotary Wing Agricultural Unmanned Aerial Vehicle

•
