1. Agricultural Irrigation 2 Stroke Air-Cooled Water Pump can produce large volume water discharge 2. high effective mechanical seal , compact and light weight structure, aluminum alloy high pressure
Contact Us Product Center

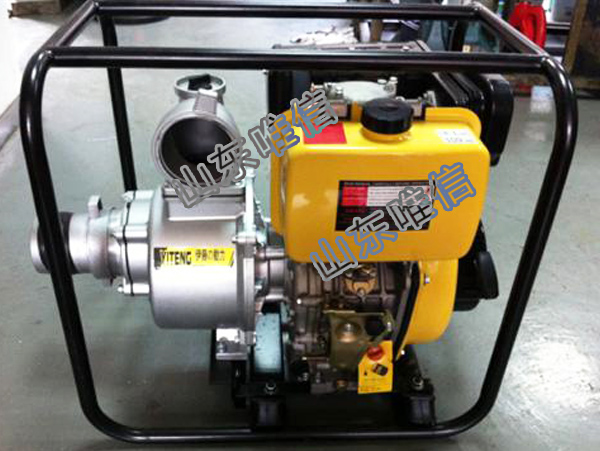

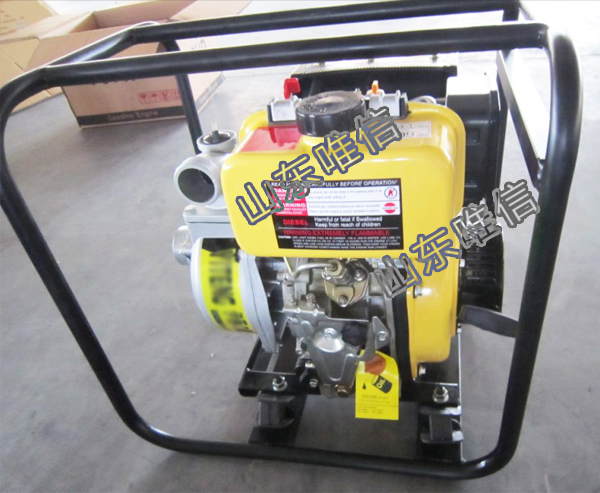

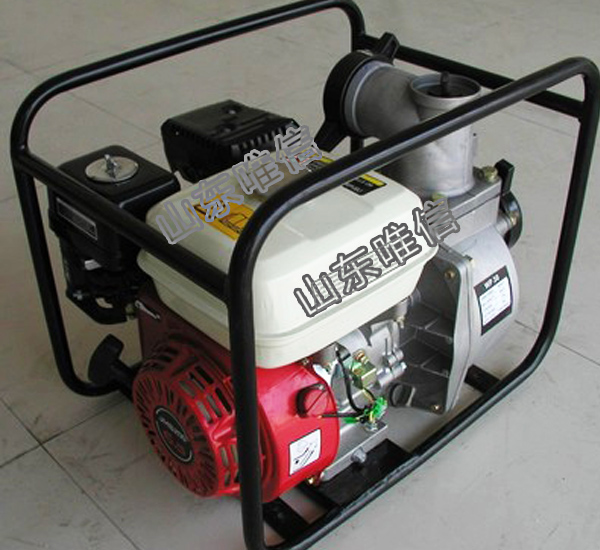

1. Agricultural Irrigation 2 Stroke Air-Cooled Water Pump can produce large volume water discharge
2. high effective mechanical seal , compact and light weight structure, aluminum alloy high pressure casting;
3. Full frame protection offers exceptional performance even in the toughest conditions.
4. Application field: The machine is applied in forestry, fishery, animal husbandry and agriculture.
|
Model |
HL40D |
|
|
Pump |
Water Pump Type |
Self-priming pump |
|
|
Outlet Size(mm/inch) |
100(4”) |
|
|
Inlet Size(mm/inch) |
100(4”) |
|
|
Capacity (m3/h) |
40 |
|
|
Lift(m) |
28 |
|
|
Suction (m) |
7 |
|
Engine
|
Engine Type |
QH186F |
|
|
Rated Power(KW) |
10 |
|
|
Type |
Single Cylinder,Air-cooled,4-stroke,OHV |
|
|
Bore*Stoke(mm*mm) |
86*70 |
|
|
Displacement (cc) |
406 |
|
|
Oil Volume (L) |
1.65 |
|
|
Starting Type |
Recoil starting |
|
Package |
Dimension(L*W*H) (mm) |
665*495*625 |
|
|
Net/Gross Weight (kg) |
69/71 |
|
|
20 FT Qty(Sets) |
114 |
