1.The fuselage, boom and blade can be folded and designed to be lightly loaded. 2.High-strength carbon fiber body, aviation aluminum alloy components. 3.A-B flight mode; intelligent planning route, fu
Contact Us Product Center

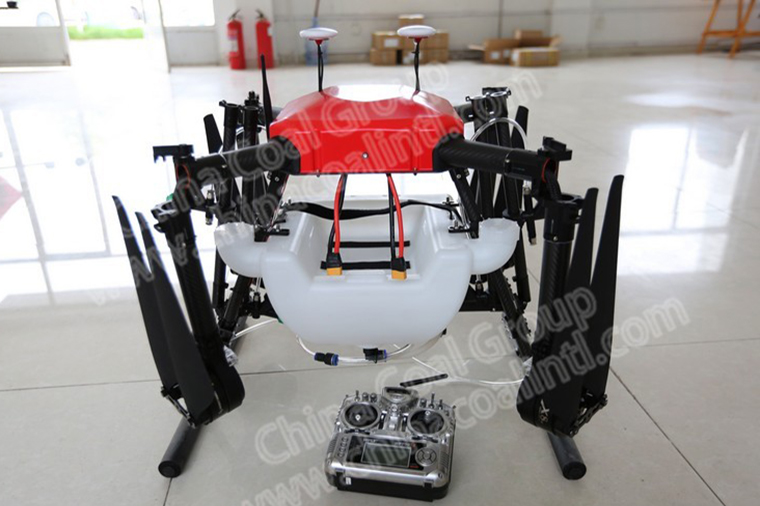

1. The fuselage, boom and blade can be folded and designed to be lightly loaded.
2. High-strength carbon fiber body, aviation aluminum alloy components.
3. A-B flight mode; intelligent planning route, fully automatic flight mode, flight more worry.
4. Breakpoint continuous spray function, the spray is not heavy.
5. National utility model patented product, safe and reliable.
6. Standard dual GNSS module, double safety of flight safety.
7. Radar wave anti-landographic high-altitude operation (optional radar fixed height component, special non-plain area such as hilly tea garden).
Project
Parameter
Remarks
Product material
Aviation carbon fiber + aviation aluminum
Waterproof case, portable folding, high drop resistance
Product expansion size
940*940*570mm (without paddle)
Product folding size
680*680*570mm
Drone weight
11KG
Maximum pesticide load
10L
Flight altitude
≤50m
Suitable for 1-3 meters at the top of the crop
Flight radius
≤2000m
Flight speed
0-10m/s
Fixed speed cruise
Job width
2-5 meters
Anti-floating pressure nozzle
Life time
≤20min
Spray flow
0.8-2L/min
Automatic flow control
Control efficiency
≤400 acres / day
Safe takeoff and landing wind speed
≤5
Can adapt to certain winds
Power system
Polymer lithium battery 16000mah 6s
Can be quickly charged, two pieces in a group
Flight mode
Manual, intelligent A-B point, fully automatic
Fixed height, fixed point, A-B point spraying function, full autonomous planning flight, drug breakpoint memory, drug breakpoint continuous spraying
