Engineering Dedicated Channel Lining Machine

Introduction of Engineering Dedicated Channel Lining Machine

Channel lining machine used for long distance, large section of the channel lining construction, the concrete lining can be feeding, paving, mentioning pulp, the channel lining machine can also be carried out Cement or sand gravel material paving, leveling construction.

Features of Engineering Dedicated Channel Lining Machine

• Feeding, feeding the whole use of screw conveyor, high efficiency, no leakage material, do not run pulp, good to maintain the initial mix of concrete, and high efficiency.

• Spiral conveyor screw blade with manganese alloy material, wear resistance, long life;

• High-frequency plug-in vibrating technology, good pulp effect;

• Automatic leveling system, electric screw lift, convenient and fast, stable and reliable quality;

• Machine running motor soft start, truss walking smooth;

• Truss connection, modular design, easy to increase or decrease the length, change the slope ratio, improve the machine to adapt to channel changes;

• The leveling system uses the potential sensing, set the upper and lower action range, can flexibly adjust the height of the walking frame, to ensure the machine slope accuracy;

• Screw conveyor, length can be combined with the length of the truss length.

Parameters of Engineering Dedicated Channel Lining Machine

Roller diameter φ230 mm

Screw conveyor diameter φ260 mm

Roller drive mode chain drive

Screw conveyor speed 136 rpm

Walking speed 0-1.2m / min

Silo specifications 630 x 500 x 530 mm

Traveling motor 4 × 2.2 kW

The transmission power is configured according to the slope length

Smoothing template length 500mm (tail adjustable)

Adapt to slope length 23m (longest lining)

Lining thickness 100-200 mm

Adapt to slope according to customer needs

Maximum efficiency of 1.2m / min

Lifting device hydraulic lifting / electric machinery lifting

High frequency vibrating rods VAF50-1

Run mode manually

Walking mode orbit

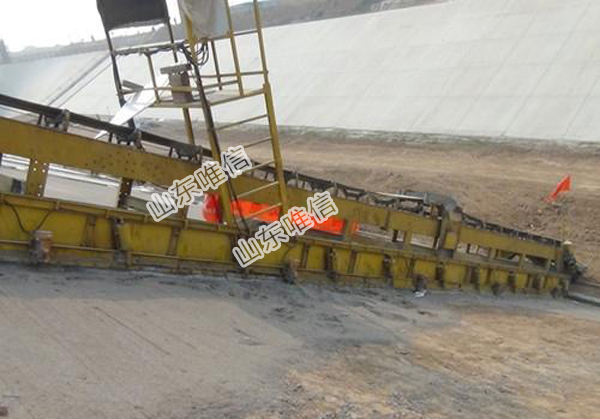

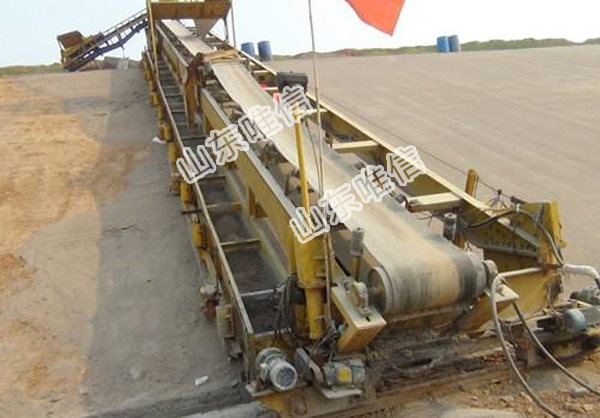

Photos of Engineering Dedicated Channel Lining Machine

PHOTOS OF

Engineering Dedicated Channel Lining Machine

•
